Advanced Mac Substitute Legacy Documentation

---

Advanced Mac Substitute runs in the xv68k emulation rig.

Example

xv68k --screen=$screen_file -m ams-core -m ams-rsrc -m ams-qd -m ams-ui $program

The screen is 21888 bytes of raw 512x342 bitmap data (with 0 coding for white and 1 for black). The file will be created if it doesn’t exist.

Mac OS support is split into several modules:

• ams-core consists of anything OS-related, as well as the Event Manager.
• ams-rsrc implements the Resource Manager.
• ams-seg implements the Segment Loader.
• ams-pack implements the Package Manager.
• ams-qd provides QuickDraw and the Font Manager.
• ams-ui includes the Window Manager, Control Manager, and Menu Manager.

In addition, the program app is needed to launch the first application.

The lowest-level module is ams-core; all others depend on it.

The GetResource() function (in ams-rsrc) is required

• by ams-seg, in order to load 'CODE' resources,
• by ams-pack, to load 'PACK' resources,
• by ams-qd, to load fonts (if any text is rendered),
• by ams-ui, to load the desktop pattern in InitWindows().

Obviously, ams-ui depends on QuickDraw.

GetResource() attempts to communicate with a Freemount server on file descriptors 6 and 7, as would be the case if you ran tcpclient $host $port xv68k .... A resource like 'PAT ' id=16 (the desktop pattern) is mapped to the path "System/r/0010.PAT " and requested from the server. You can either run freemountd in MacRelix with an actual resource file called "System" at top level, and let MacRelix interpret the "r" path component as resource access, or create a "System/r" directory structure with the resources as actual files.

If CurApName is non-empty, it’s the name of the currently running application. GetResource() now checks for resources in the application file first, and if not found, then checks in "System".

If ams-rsrc is unable to reach a file server, or the request fails, then GetResource() sets ResErr to resNotFound (or possibly memFullErr) and returns NULL, and InitWindows() will use qd.gray instead of 'PAT ' id=16 from the System file.

GetNextEvent() and WaitNextEvent() receive user input events from outside via the SPIEL (Simple, Platform-Inclusive Event Lode) protocol. MacRelix’s eventtap view provides this.

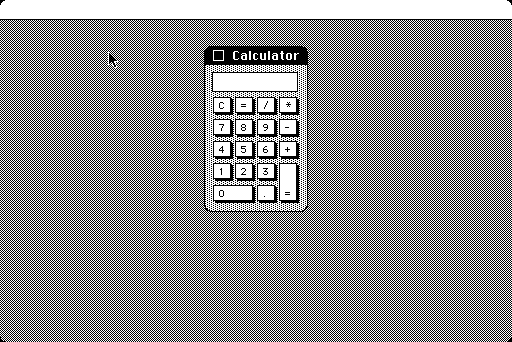

Launching Mac applications

Launching a Mac application in xv68k is a complex process because it has a number of moving parts. First, we’ll use FORGE to open a window:

cd /gui/new/port

echo 512x342 > size

ln new/stack view

ln new/eventtap v/events/view
ln new/bitmap   v/screen/view

echo 512x342 > v/screen/v/size

touch window

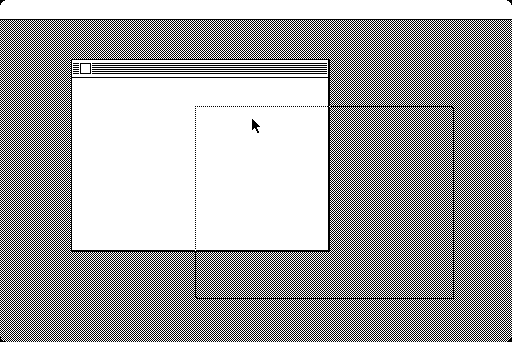

That creates a window whose interior size matches the original Macintosh screen resolution. It contains an eventtap view Z-stacked onto a bitmap view. The eventtap view captures user input events for transport into the emulator (but doesn’t draw anything); the bitmap view displays graphics output.

We also need a way to get the CODE resources from the application file. We’ll use the graft utility to launch a Freemount server, with xv68k as its client, connected by a socket pair:

CTTY=--ctty=tty
SCREEN=--screen=v/screen/v/bits
EVENTS=--events-fd=8
STREAM=v/events/v/stream
APP=$tools/app
App=TestApp

daemonize --cwd $CTTY             -- \
    graft freemountd --root $dir  // \
    xv68k --screen=$SCREEN 8< $STREAM -m [ ams-core $EVENTS ] -mams-{rsrc,qd,ui} $APP TestApp

Let’s tackle this in order:

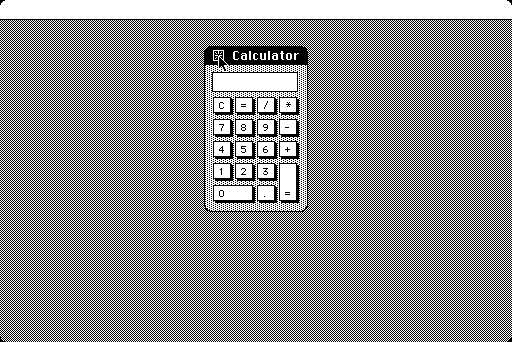

• daemonize is a program that launches other programs as daemons. Normally daemonize will change to the root directory, but the --cwd option inhibits this. The --ctty option specifies a file to open as the new controlling terminal. In FORGE, every window is a terminal, and its tty file is the device file for its terminal (even though it’s not necessarily a TTY device in the sense of teletypes). If we omitted this, the daemonized program would still run, but wouldn’t receive SIGHUP when the window’s close box is clicked. The -- word has its usual meaning, separating options from non-option arguments. The \ just before the line break allows the entire command to be continued on the next line.

• graft is a utility that creates a socket pair and launches two other programs. The first program is the server, and its file descriptors 0 and 1 are redirected to one of the sockets. The second program is the client, and its file descriptors 6 and 7 are redirected to the other socket.

• freemountd is a Freemount file server. The // terminates the command that graft runs as the server; the client command follows. The \ continues onto the next line again.

• xv68k is an emulation rig — that is, an executable client of the v68k library. The --screen option names a file that will be used as a framebuffer. By using the FORGE bitmap view’s bits file, writes (and msyncs) to this file are displayed in the window. The eventtap view captures user input events and makes them available (as SPIEL data) by reading its stream file. We open that for reading on file descriptor 8. (No, that’s not scissors.) The -m option loads a module. We can pass arguments to the module by enclosing the subinvocation in square brackets.

• The ams-core module provides a partial reimplementation of classic Mac OS. The --events-fd option indicates the file descriptor from which to read SPIEL messages to convert to EventRecords.

• The ams-rsrc module provides a partial reimplementation of the classic Mac OS Resource Manager. It’s split out into its own module to isolate its dependency on the Freemount client library.

• The ams-qd module provides a partial reimplementation of classic Mac OS QuickDraw. It’s split out into its own module to support the development of natively accelerated implementations.

• The ams-ui module provides a partial reimplementation of the classic Mac OS Window Manager. It’s split out into its own module to support the development of alternative implementations.

• The app tool is a simple program that invokes the _Launch trap. Its argument is the name of a Mac application in the directory served by Freemount. It’s the bridge between MacRelix’s virtual Unix world and ams-core's even more virtual Mac OS world.

• TestApp is a Mac application that’s been carefully written to use only those Mac OS features that are supported by Advanced Mac Substitute. It also runs natively.
